Two-Color Temperature COB Light Source High Cri Integrated Cob Led Chip
- 2700K-6000K intelligent stepless dimming and toning;
- 90Ra, various Ra schemes are optional;
- Dimming products, same power better light effect, same luminous surface better light power;
- Advanced packaging process, replacing CSP, CSC packaging;
- Light source secondary internal optics, better light pattern layout;
- 120LPW@90Ra 2700K universal solution, high quality;
- Certified by LM-80 and EN62471
Typical Applications
• Portable (flashlight, bicycle)
• Uplighters/Downlighters
• Decorative/Entertainment (stage light)
• Bollards/Security/Garden
• Indoor/Outdoor Commercial and Residential Architectural
• Automotive Ext (Stop-Tail-Turn, CHMSL, Width Lamp)
Technical Specifications of Cob Led Chip
Advantages of a CoB LED
Using a single LED can result in simpler design and product as well as providing optical advantages for uniform light and efficient optics. Electrical design is simpler because the CoB LED only requires a single two-wire power supply to the entire array of chips.
| Part No. | Power (W) |
CCT (K) |
CRI | Max (lm) |
VF (V) |
IF (mA) |
Efficacy (lm/W) |

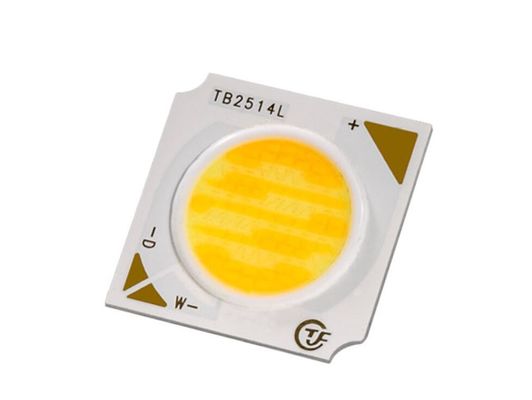

| TB2514L LESφ14mm SIZE:19*19mm |
36 | 2700 | 90 | 3650 | 36.5 | 1000 | 100 |
| 6000 | 90 | 4015 | 36.5 | 1000 | 110 |
We believe our customers’ expectations belowing are self-evident:
Packaging and delivery
| Packaging Details | Safety package for led cob 5w full spectrum |
| Anti-static plate in deal with empty space. | |
| One plate with 100 units,and one box with 50000 units. | |
| Selling Units: | Multiple of 1000 |
| Package size per batch: | 20X20X20 cm |
| Gross weight per batch: | 2.000 kg |
