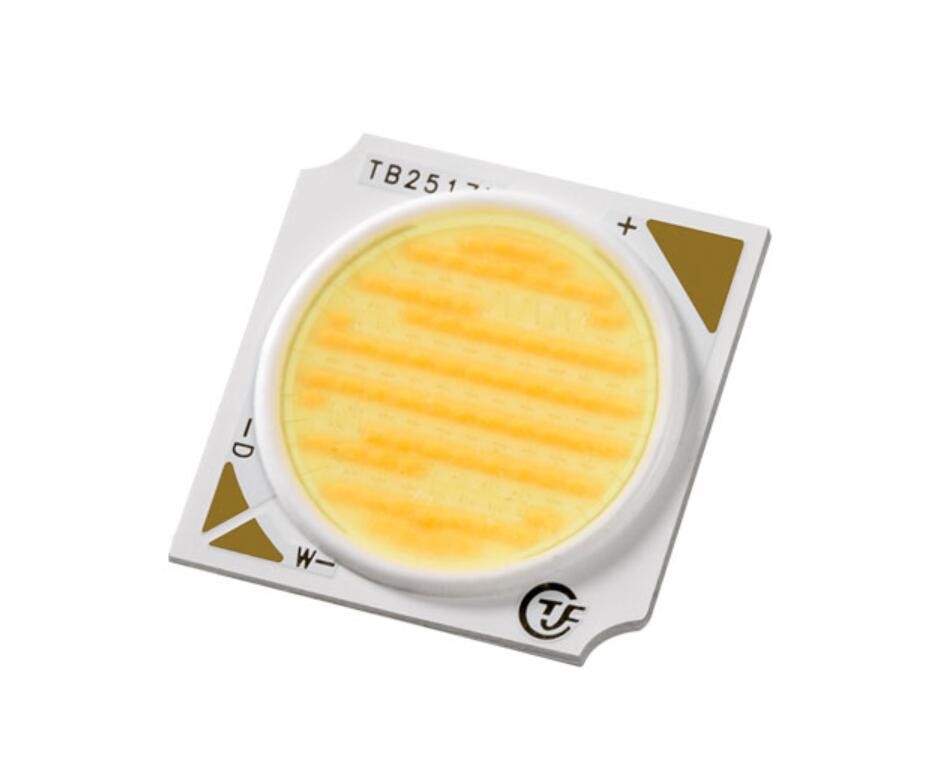

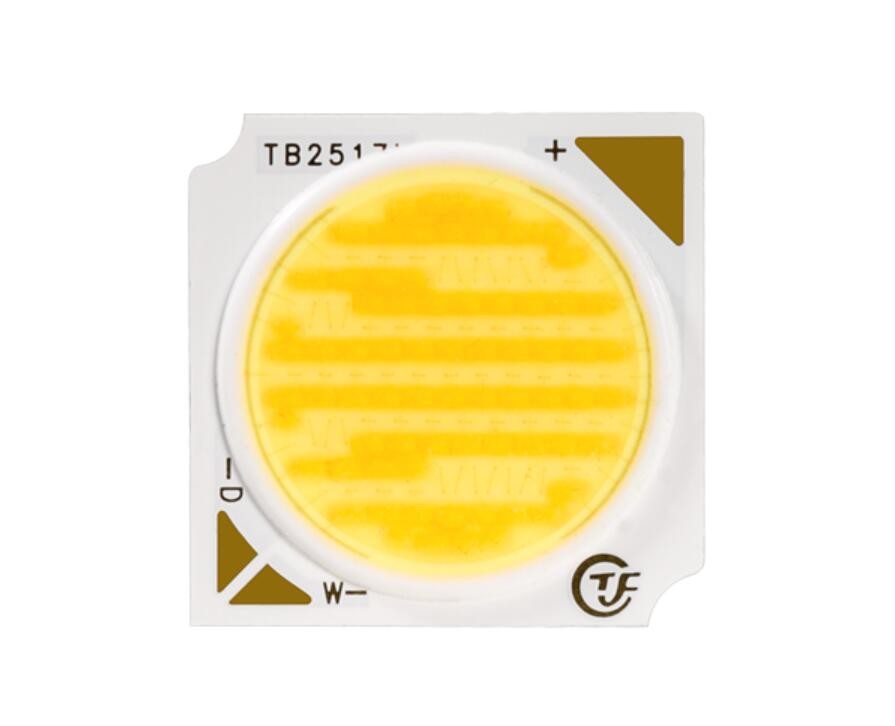

45W TB2517L COB LED Chip Dimming Cob Light Source For Bollards / Garden
Technical Specifications of Cob Led Chip
-2700K-6000K intelligent endless dimming and color adjustment;
-90Ra main push, with various Ra options available;
-Dimming products, with the same power for better light efficiency and the same emitting surface for better light power;
-Advanced packaging technology, replacing CSP and CSC packaging;
-Secondary internal optics of the light source, with a more optimized optical layout;
- 120LPW@90Ra 2700K universal solution, high light quality;
-Certified through LM-80 and EN62471
Applications for Cob Led Chip Light Source
>>Entertainment Spot/Wash Lighting
>>Architectural spot/wash lighting
>>Fiber coupled ilumination/Fiber Optic Lighting
>>Effect Lighting/Even Lighting
>>Commercial LOGO Projection Illumination
>>Stage Lighting Projecting
>>Entertainment Lighting, projection lights, Moving heads.
>>Medical Lighting
| Part No. | Power (W) |
CCT (K) |
CRI | Max (lm) |
VF (V) |
IF (mA) |
Efficacy (lm/W) |
| TB2517L LESφ17mm SIZE:19*19mm |
45 | 2700 | 90 | 4380 | 36.5 | 1200 | 100 |
| 6000 | 90 | 48180 | 36.5 | 1200 | 1100 |
Benefits of CoB LED:
Utilizing a single LED simplifies both design and product, offering optical advantages for uniform light distribution and efficient optics. The electrical design is straightforward, as the CoB LED only necessitates a single two-wire power supply for the entire chip array.
Packaging and delivery
| Packaging Details | Safety package for led cob 5w full spectrum |
| Anti-static plate in deal with empty space. | |
| One plate with 100 units,and one box with 50000 units. | |
| Selling Units: | Multiple of 1000 |
| Package size per batch: | 20X20X20 cm |
| Gross weight per batch: | 2.000 kg |
