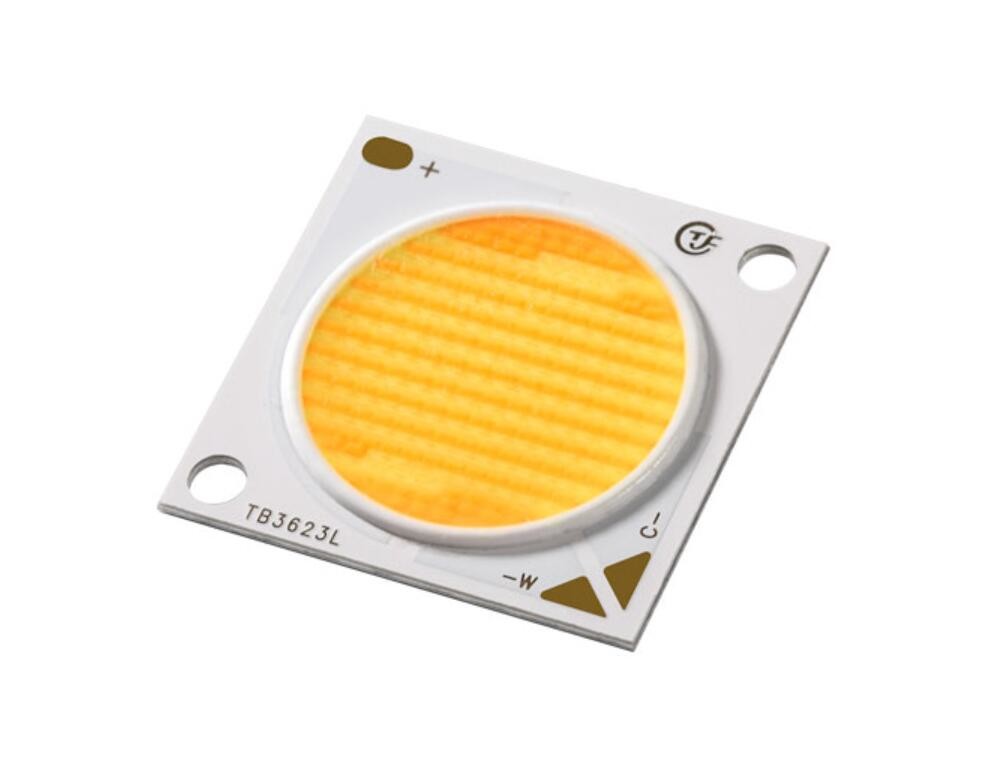

TB3623L COB LED Chip Commercial COB Light Source For Downlight Track Light
Technical Specifications of Cob Led Chip
1. Good solution for linear light. It perfect achieve the Dot-Free lighting effect even if without any profile or PC cover.
2. Continuous and uniform linear illumination, with soft and elegant light, no glare.
3. Adopt Flip-Chip technology, no dead light risk.
4. Single point's current is small, which provides good heat dispersion, long life span and low luminous decay.
5. More flexible and bendable than the traditional led strip, it has a bending radius of only 5mm, so it can be any shape you want.
Applications of CoB LED:
General Lighting: CoB LEDs are widely used for general lighting purposes in residential, commercial, and industrial spaces.
Spotlights and Downlights: Ideal for spotlights and downlights due to their compact design and efficient light output.
Track Lighting: CoB LEDs are commonly employed in track lighting systems for adjustable and focused illumination.
Retail Displays: Used to highlight products in retail displays, providing bright and uniform lighting.
Automotive Lighting: Applied in automotive headlights and interior lighting for efficient and focused illumination.
Outdoor Lighting: Used in outdoor fixtures such as floodlights and pathway lights for energy-efficient lighting.
Architectural Lighting: Employed in architectural lighting designs to accentuate building features.
Horticultural Lighting: CoB LEDs are used in horticulture for providing specific light spectrums that promote plant growth.
Medical Lighting: Utilized in medical applications for precise and focused lighting in examination rooms and surgical suites.
Street and Area Lighting: CoB LEDs contribute to energy-efficient streetlights and area lighting solutions.
| Place of Origin | Zhejiang, China |
| Type | COB LED |
| Emitting Color | white |
| Luminous Intensity | Distance |
| Luminous Flux(lm) | 120-140 |
| Optical Attenuation(%) | 0.3 |
| Power | 5W/7w/9w/12w |
| Power Dissipation | 0.4 |
| Viewing Angle(°) | 120 Degrees |
| Color Temperature | 2700-6500K |
| Brand Name | LEARNEW |
| Certification | ce |
| Product name | 5W 7W 9W 12W 1414 cob led chip |
| led module size | 14*14mm |
| LES(EMIT AREA) | R11mm |
| Power dissipation | 5W/7W/9W/12W |
| Circuit | 5S2P/7S4P/12S2P |
| Voltage | 12-17V/21-24V/35-38V |
| Current | 300mA |
| CRI | 80 |
| View Angle |
120° |
Packaging and delivery
| Packaging Details | Safety package for led cob 5w full spectrum |
| Anti-static plate in deal with empty space. | |
| One plate with 100 units,and one box with 50000 units. | |
| Selling Units: | Multiple of 1000 |
| Package size per batch: | 20X20X20 cm |
| Gross weight per batch: | 2.000 kg |
