COB Series ML54-02L Cob Led Chip Full Spectrum Growing 5W 7W 9W 12W
Technical Specifications of Cob Led Chip
-2700K-6000K intelligent endless dimming and color adjustment;
-90Ra main push, with various Ra options available;
- 120LPW@90Ra 2700K universal solution, high light quality;
-Intelligent dimming 7th generation light source technology, up to 90Ra;
-150LPW and unique secondary optical distribution of light sources;
-Infinite dimming, intelligent enjoyment of life
CoB LED Applications:
Part No. | Power (W) |
CCT (K) |
CRI | Max (lm) |
VF (V) |
IF (mA) |
Efficacy (lm/W) |

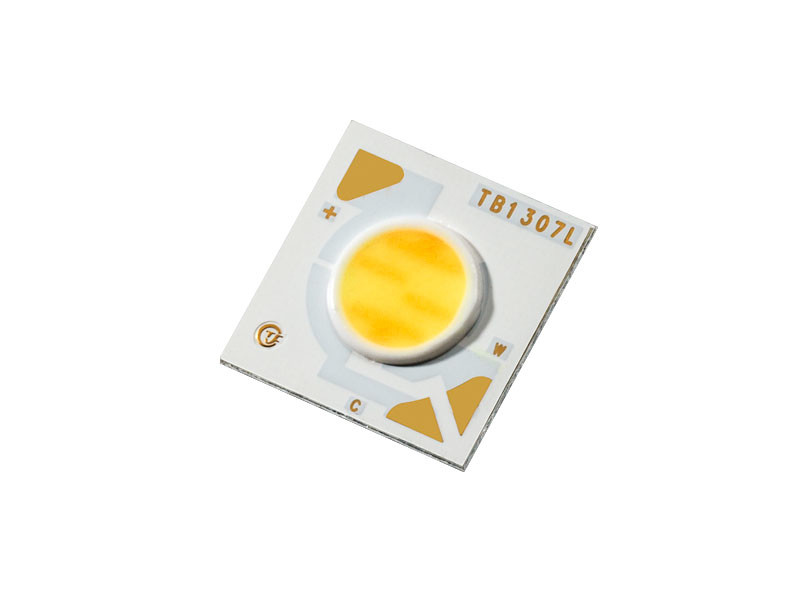

TB1307L LESφ7.4mm SIZE:13.5*13.5mm |
8 | 2700 | 90 | 832 | 36.5 | 240 | 95 |
6000 | 90 | 964 | 36.5 | 240 | 110 | ||
10 | 2700 | 90 | 1095 | 36.5 | 300 | 100 | |
6000 | 90 | 1205 | 36.5 | 300 | 110 |
Packaging and delivery
Packaging Details | Safety package for led cob 5w full spectrum |
Anti-static plate in deal with empty space. | |
One plate with 100 units,and one box with 50000 units. | |
Selling Units: | Multiple of 1000 |
Package size per batch: | 20X20X20 cm |
Gross weight per batch: | 2.000 kg |
