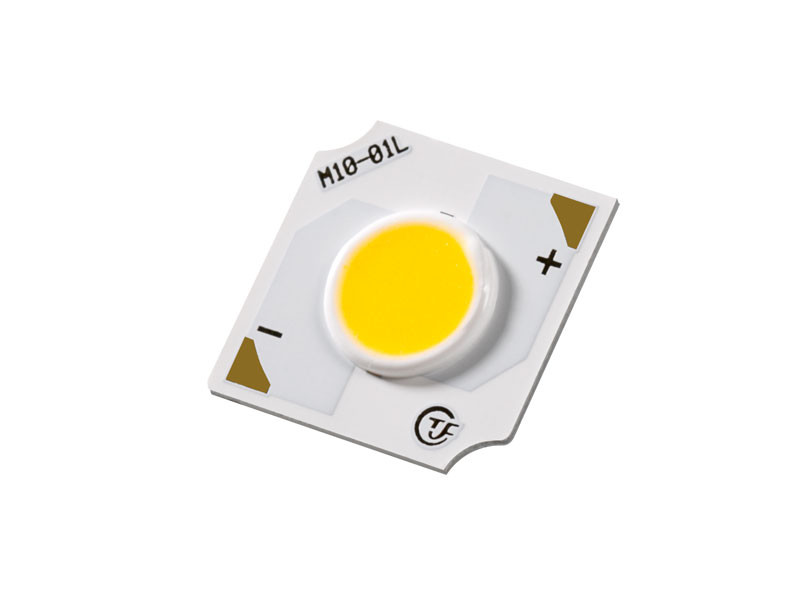

CR1307KA COB LED Chip Commercial COB Light Source For Downlight Track Light
Features:
- 3.5 W small LES COB LED
- 2-step/3-step MacAdam ellipse
- LESφ7.4mm
- Size: 13.35 x 13.35 mm
-Fluorescent powder near-field distribution technology greatly reduces COB temperature;
-ANSI standard 2nd and 3rd order color tolerances are optional;
-High color rendering, high light efficiency, energy-saving, and high saturation color;
- 160LPW@80Ra 3000K 85 ℃;
- 130LPW@90Ra 3000K 85 ℃;
-Certified by LM-80 and EN62471;
-Unique light source spot color design;
-Create a comfortable lighting environment with special lighting
Technical Specifications of Cob Led Chip
1. Good solution for linear light. It perfect achieve the Dot-Free lighting effect even if without any profile or PC cover.
2. Continuous and uniform linear illumination, with soft and elegant light, no glare.
3. Adopt Flip-Chip technology, no dead light risk.
4. Single point's current is small, which provides good heat dispersion, long life span and low luminous decay.
5. More flexible and bendable than the traditional led strip, it has a bending radius of only 5mm, so it can be any shape you want.
CoB LED Applications:
Part No. | Power (W) |
CCT (K) |
CRI | TYP (lm) |
VF (V) |
IF (mA) |
Efficacy (lm/W) |
CR1307 LESφ7.4mm SIZE:13.35*13.35mm |
3.5 | 2200 | 80 | 466 | 34.5 | 100 | 135 |
2700 | 501 | 34.5 | 100 | 145 | |||
3000 | 518 | 34.5 | 100 | 150 | |||
3500 | 525 | 34.5 | 100 | 152 | |||
4000 | 532 | 34.5 | 100 | 154 | |||
5000 | 539 | 34.5 | 100 | 156 | |||
5700 | 546 | 34.5 | 100 | 158 | |||
6500 | 539 | 34.5 | 100 | 156 | |||
2200 | 90 | 389 | 34.5 | 100 | 113 | ||
2700 | 424 | 34.5 | 100 | 123 | |||
3000 | 438 | 34.5 | 100 | 127 | |||
3500 | 441 | 34.5 | 100 | 128 | |||
4000 | 445 | 34.5 | 100 | 129 | |||
5000 | 448 | 34.5 | 100 | 130 | |||
5700 | 452 | 34.5 | 100 | 131 |
Packaging and delivery
Packaging Details | Safety package for led cob 5w full spectrum |
Anti-static plate in deal with empty space. | |
One plate with 100 units,and one box with 50000 units. | |
Selling Units: | Multiple of 1000 |
Package size per batch: | 20X20X20 cm |
Gross weight per batch: | 2.000 kg |
