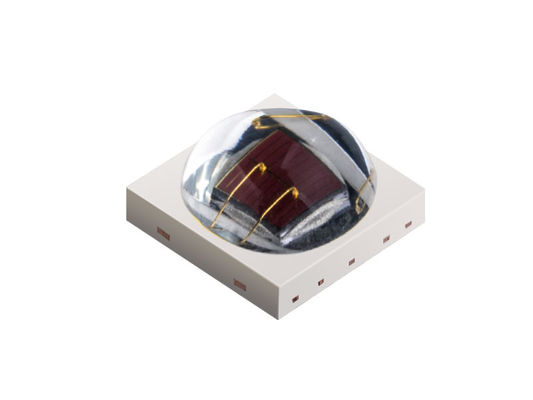

PCT3030-TH SMD LED Chip High Light Efficiency TH Series 30W 40W 50W 60W
- Using special welding process, the product has stronger cold impact and stress resistance
- Color The difference of a single lamp bead is controlled within 2SDCM color tolerance to ensure color consistency
- Use centrifugal process to make the color more thorough, the best light effect
- Color uses mainstream color as the basis for human eyes to experience the best light quality
Application field
Throw light lamp, wash wall lamp, landscape lamp and other outdoor lighting lamps
| Product Name | Series | Voltage Level | Maximum Current | Wavelength/Color Temperature | Light Flux @ 1W |
| E35 | R: | 2 | 800 | R:620-625 | 60-70 |
| G: | 3 | 1000 | G:520-530 | 120-130 | |
| B: | 3 | 1000 | B:455-465 | 30-40 | |
| Y: | 2 | 800 | Y:585-595 | 60-70 | |
| O: | 2 | 800 | O:600-610 | 90-100 |
Feature of SMD LED Chip
| Place of Origin | Zhejiang, China |
| Color Temperature(CCT) | WW:2700-3000K; NW:4000-4500K; PW:6000-6500K |
| Input Voltage(V) | 30-34V;36-38V;45-48V;90-100V |
| Type | SMD LED |
| Lighting solutions service | Lighting and circuitry design, LitePro DLX layout, auto CAD layout |
| Lifespan (hours) | 20000 |
| Working Time (hours) | 20000 |
| Product Weight(kg) | 0.02 |
| Emitting Color | White |
| Luminous Flux(lm) | Custom Made |
| Power | 30W 40W 50W 60W |
| Viewing Angle(°) | 120 |
| Operating Temperature(℃) | -105 |
| Storage Temperature(℃) | -140 |
| Brand Name | Kinglux |
| Product name | COB LED Chip |
| Our Service | Provide Free Sample Service |
| Circuit | Custom Made |
| Color | Custom Made |
| Current | Custom Made |
| Input Voltage | 30-34V;36-38V;45-48V;90-100V |
| Outline dimension | 28*28MM |
| View Angle | 120° |
| Warranty | 5 Years |
