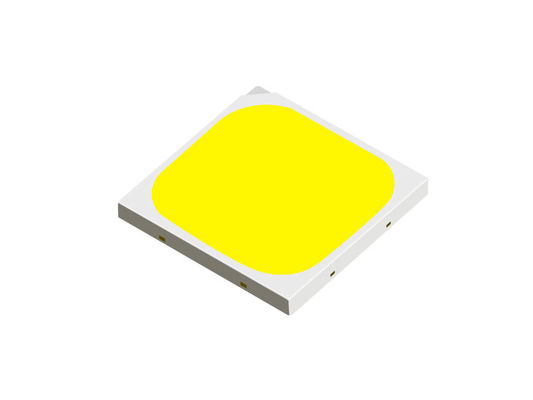

Outdoor 150MA SMD LED Chip EMC3030 LED Light Source For Mining Lamps
- Smaller luminous surface to achieve higher central illumination;
- Different power versions, a single image to achieve 800-1600 lumen light output,
Under the condition of @1W, the high light efficiency of 230lm/w can be achieved.
- Better light and color performance, avoid double shadow, high reliability EMC packaged products;
- Perfect balance of light efficiency, reliability, lighting quality and overall cost advantage.
| Product name | Series | Product model | Voltage class | Maximum current | Maximum working power | RA-80 Light efficiency@1W(lm/w) | RA-70 Light efficiency@1W(lm/w) |
| E70-F | PR1835 | DGY.S-E7-90-RA-PF | 56 | 150 | 9 | 215 | 220 |
| DGY.S-E7-80-PA-PF | 50 | 150 | 8 | 215 | 220 | ||
| DGY.S-E7-90-63-PF | 19 | 450 | 9 | 215 | 220 | ||
| DGY.S-E7-80-44-PF | 12 | 600 | 8 | 215 | 220 | ||
| DGY.S-E7-80-82-PF | 24 | 300 | 8 | 215 | 220 | ||
| PR2240 | DGY.S-E7-90-RA-PD | 54 | 150 | 9 | 220 | 225 | |
| DGY.S-E7-80-PA-PD | 48 | 150 | 8 | 220 | 225 | ||
| DGY.S-E7-90-63-PD | 18 | 450 | 9 | 220 | 225 | ||
| DGY.S-E7-80-44-PD | 12 | 600 | 8 | 220 | 225 | ||
| DGY.S-E7-80-82-PD | 24 | 300 | 8 | 220 | 225 | ||
| PR2346 | DGY.S-E7-90-RA-PE | 54 | 150 | 9 | 225 | 230 | |
| DGY.S-E7-80-PA-PE | 48 | 150 | 8 | 225 | 230 | ||
| DGY.S-E7-90-63-PE | 18 | 450 | 9 | 225 | 230 | ||
| DGY.S-E7-80-44-PE | 12 | 600 | 8 | 225 | 230 | ||
| DGY.S-E7-80-82-PE | 24 | 300 | 8 | 225 | 230 |
