Home /Products/SMD LED Chip/Outdoor 150MA SMD LED Chip EMC3030 LED Light Source For Mining Lamps

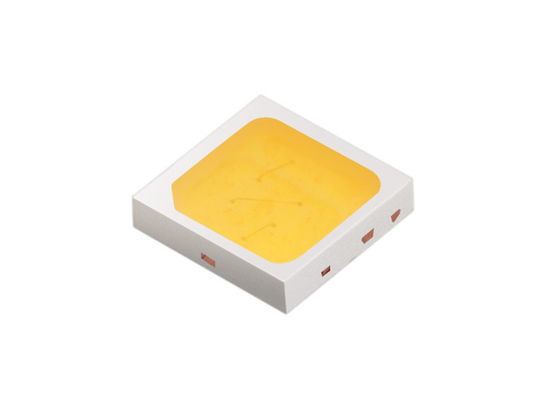

Outdoor 150MA SMD LED Chip EMC3030 LED Light Source For Mining Lamps

Negotiable
MOQ
Negotiable
Price
Outdoor 150MA SMD LED Chip EMC3030 LED Light Source For Mining Lamps
Features Gallery Product Description Request A Quote
Features
Specifications
Name: SMD LED Chip
Housing Material: Cast Aluminum
4000k,RA-80 Light Flux@1W: 150lm/w-180lm/w
Forward Current: 150MA
Application Field: Pa Lamps, Tube Lamps, Projection Lamps
Type: SMD LED
Service: OEM,ODM
Color: Multi Color
High Light:

SMD LED Chip 150MA

,

Outdoor SMD LED Chip

,

EMC3030
Basic Infomation
Place of Origin: Zhejiang,China
Brand Name: Kinglux
Certification: CE
Model Number: EMC3030 E30
Payment & Shipping Terms
Payment Terms: L/C, T/T, Western Union, MoneyGram
Product Description

Outdoor 150MA SMD LED Chip EMC3030 LED Light Source For Mining Lamps





-150MA drive provides 150lm/w-180lm/w different gears of EMC3030LED light source
-Provide options for cutting type square cups (main push) and round cup holders
-Centered around color development, cost development, and delivery time customization, implementing the concept
-Provide customers with diversified solutions of 120lm/w-170lm/w for the whole lamp



Application field

Street lamps, Pa lamps, tube lamps, projection lamps, mining lamps, and other indoor and outdoor lighting





Characteristics And Uses of SMD LED Chip

SMD type LEDs are light sources that have the characteristic of being installed in circuits directly mounted on an electronic board. These circuits are perforated to allow the passage of the electrodes, whose welding is carried out on the lower face of the base. These are components where the electrodes do not protrude downwards, but come out from the sides of the chip. They are characterized by their flat shape: the lower part is welded directly on the electronic board, while the electrical connections are on the side. In this way it is possible to use printed circuits on an insulating base of reduced thickness and to carry out the micro-welding with automated machinery. This type of LED looks like a tiny box with one face from which the light is emitted, the opposite face which acts as a support base, while the remaining side faces are equipped with anode and cathode. In the past they have been used in miniature circuits, such as those of mobile phones, thanks to an ever higher luminous efficiency. Today they are widely used in the production of LED luminaires for general lighting. This type of LED normally has a light output of 120 degrees and is typically used, for example, in the production of LED strips.





roduct Name Series Voltage Level Maximum Current 4000k,RA-80 Light Flux@1W(lm/w) 4000k,RA-70 Light Flux@1W(lm/w)
E30 TF1734 3
6		 1.2 151 161
TF2235 3
6		 1.5 168 175
TF2240 3
6		 1.5 173 179
PR1530 3
6		 1.2 152 163
PR1835 3
6		 1.2 157 168
PR2240 3
6		 1.5 172 181




FAQ

Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.



Tag:

SMD LED Chip 235lm/W

SMD LED Chip 150MA

8W SMD LED Chip
